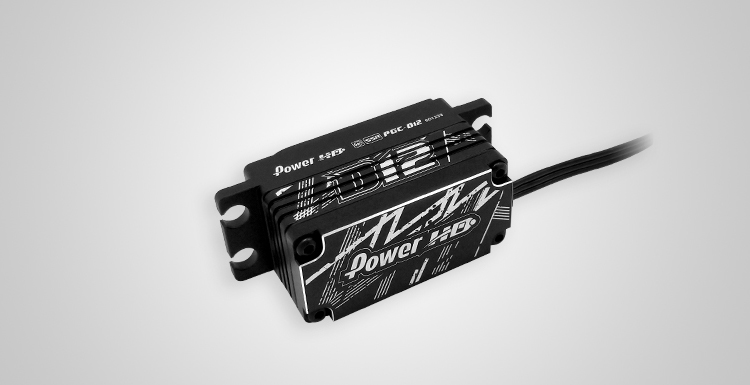

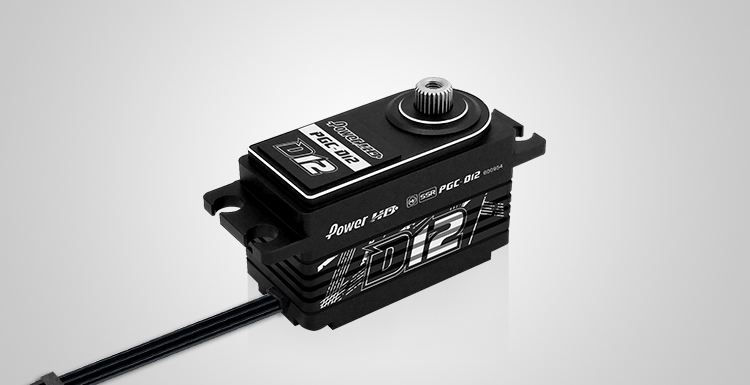

Power HD have introduced their fresh D12 reverse receiver wire low-profile servo, specific for touring cars & drift cars. [2020-07-28 14:06:29]





It features an all-aluminium case and distinctive laser pattern on the bottom, durable titanium and steel gears, a powerful coreless motor and it pulls up to 12.5kg-cm of torque at a speed of 0.059s, weighs only 55g, support SSR mode.

With receiver wire leaving the case on the opposite side of the output gear–and thus on the inside of the chassis in most cases – wiring can be carried out much neater compared to standard servos that always have the wire on the “outside” of the chassis. Therefore the servo is the ideal choice especially for 1/10th touring cars and drift cars, as it make for more tidy and safer wiring.

D12 Servo Specifications:

Torque(6.0V): 9.5 kg-cm (131.9 oz/in)
Torque(7.4V): 12.5 kg-cm (173.6 oz/in)
Speed: 0.068 sec (6.0V) │ 0.059 sec (7.4V)
Operating Voltage:6.0 ~ 7.4 DC Volts
Weight: 55.0 g (1.94 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Coreless Motor
Gear Type:Titanium & Steel
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 333hz
Size:41.0 x 20.0 x 26.3 mm ( 1.61 x 0.79 x 1.04 in)
