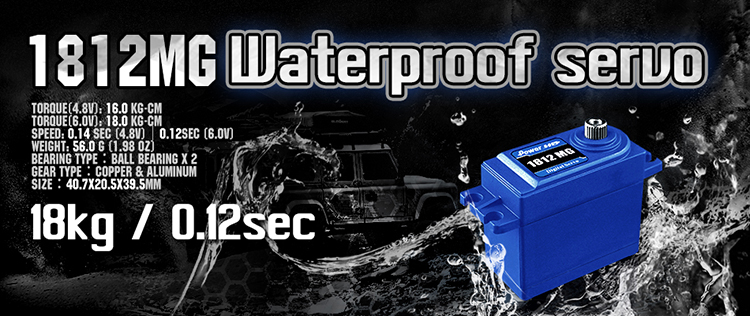

NEW ARRIVAL ! Power HD brand new waterproof servo 1812MG for beginners. [2020-05-20 16:40:05]



The standard-size 1812MG utilises a new generation high-frequency control module that eliminates the squeaky noises commonly associated with digital servos. With dual bearings, 25T output spline, waterproof function, pulling up to 18kg-cm of torque, the budget-friendly servo 1812MG is ideal to upgrade ready-to-run kits, including RC car, boat, airplane, robot, etc.

1812MG Specs£º
Torque(4.8V): 16.0 kg-cm / ( 222.2 oz/in)
Torque(6.0V): 18.0 kg-cm / ( 250.0 oz/in)
Speed: 0.14 sec (4.8V)©¦0.12sec (6.0V)
Operating Voltage£º4.8 ~ 6.0 DC Volts
Weight: 56.0 g (1.98 oz)
Bearing Type£ºBall Bearing x 2
Motor Type£ºDC Motor
Gear Type£ºCopper & Aluminum
Operating Temperature£º-20¡æ~60¡æ
Working frequence£º1520μs / 333hz
Size£º40.7x20.5x39.5mm (1.60x0.81x1.56 in)
